Bauma 2022 - Hidrokon

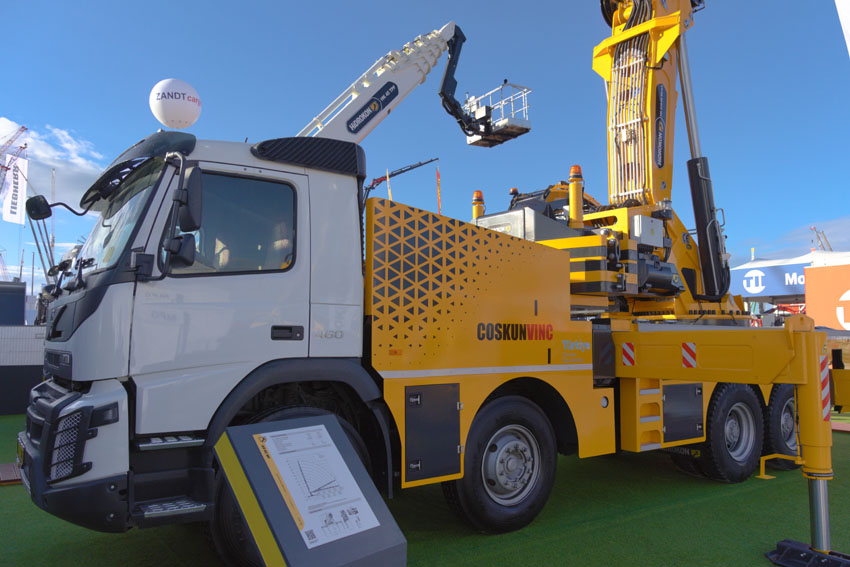

Hidrokon displayed this Volvo FMX460 8x4 of Coşkun Vinç.
A HK 210.000 crane is installed that becomes stable by using 6 large outriggers. A cab was installed at the crane.

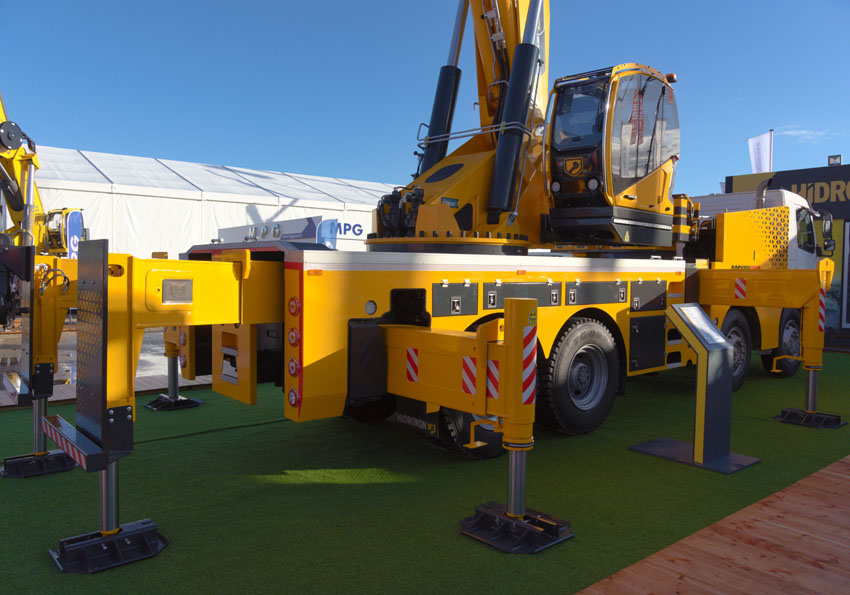

The rear outriggers extend to the rear and slighty outwards, so that they get a wider support base.

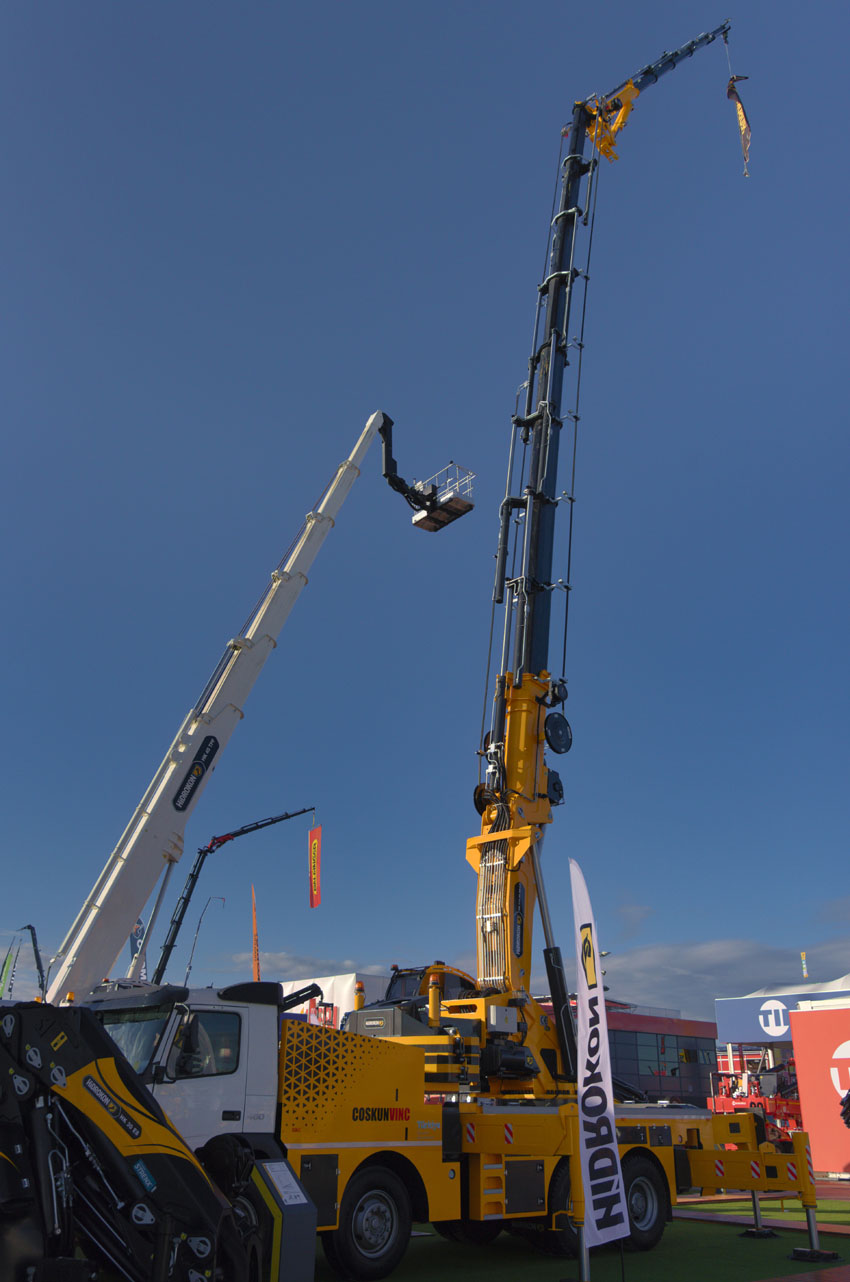

This crane lifts a maximum of 46 ton at 4 meter. The outreach of the 8 extensions of the main boom is 21,47 mtr with 6,4 tons capacity. With the L5 jib that is 38 meter with 1 ton capacity, or maximum 43,5 meter with 2 manual extensions.
The truck with crane and jib weighs around 30 tons. Additional ballast is 5 x 1180 kg that are mounted here to the rear of the crane.
A seperate crane on display is this HK110 E8 + J12E6. This crane offers 19,5 outreach with 3,7 ton capacity or 30,5 meter with 770kg at the jib.
