Iveco Trakker 450

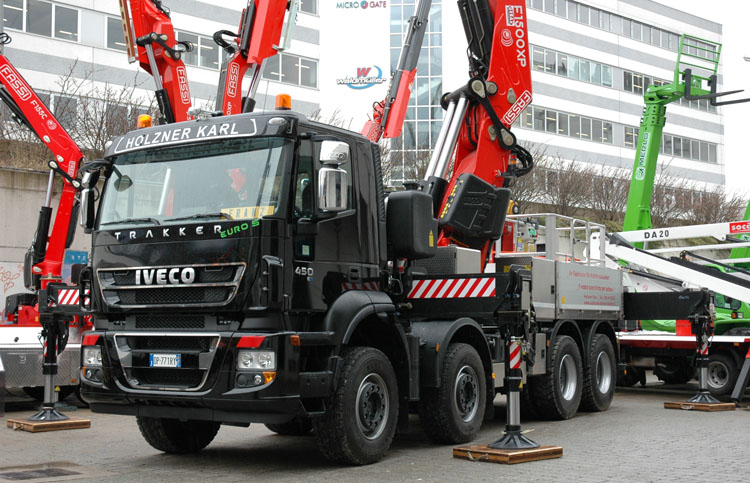

At the Baumec 2009 at Bozen (I) stood this nice Iveco of Karl Holzner at the joined stand of Fassi and Iveco Geser.

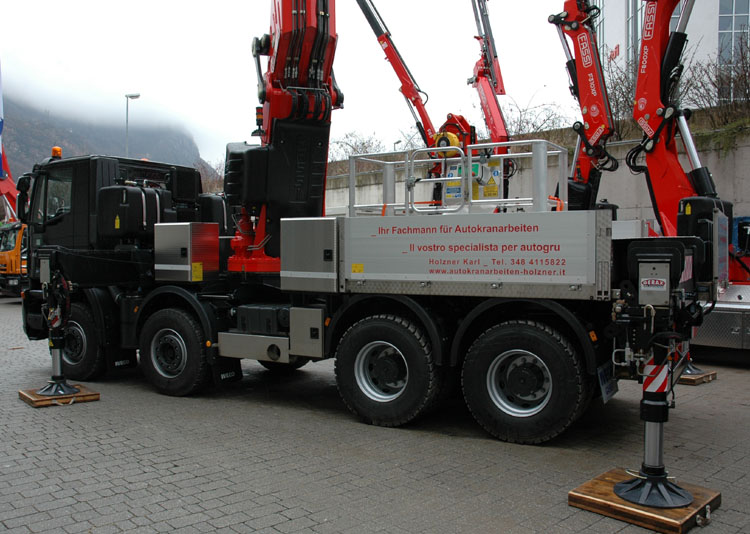

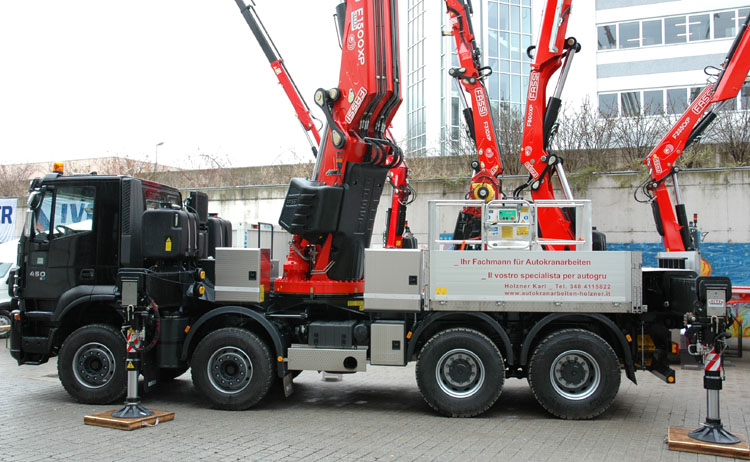

It is a Iveco Trakker 450 chassis with a Fassi 1500 crane mounted on it. The Fassi is a F1500AXP.28 with a 6x extending jib and 2 more manual extensions. The truck was also shown at the SAIE 2008 but couldn't be photographed that well.

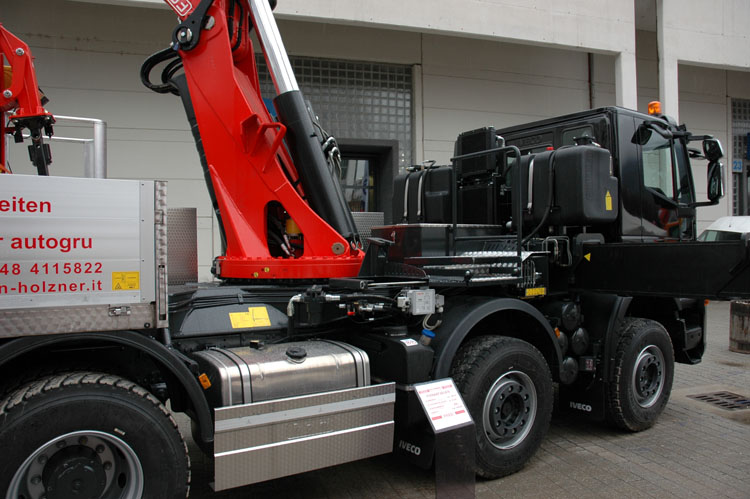

The crane is mounted on a self supporting subframe that is lying on the chassis. Both 3x extending outriggers are integrated in this chassis. This only leaves room for a small loading box that is used here to transport the worksman basket.

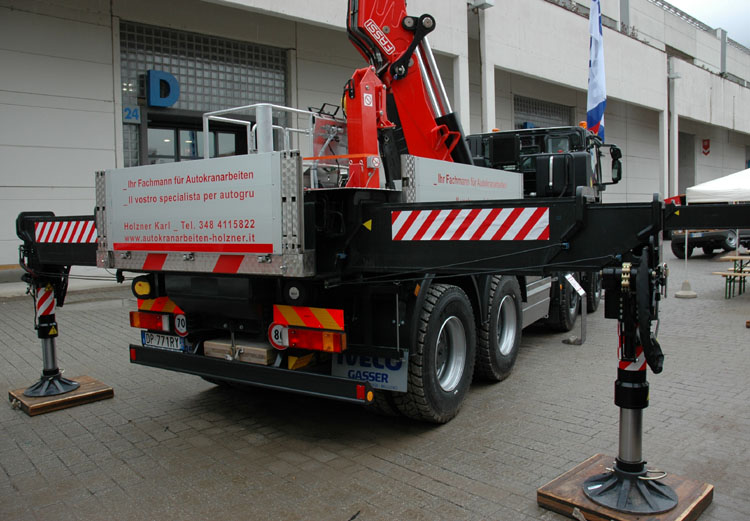

The rear outriggers also have tiltable legs, this gives a very short overhang and a good incline, good for the use in the mountainess area where Holzner operates.

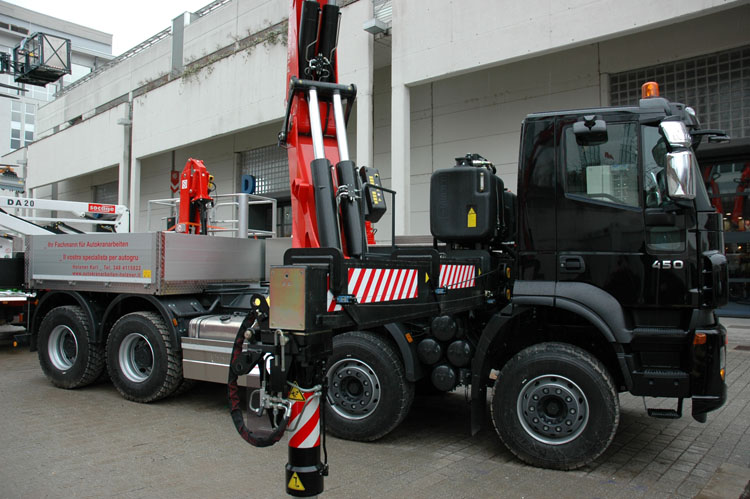

The crane is mounted at a certain distance from the front outriggers, this gives bettter lifting values to the front. According to the builder, the crane can lift about 80% of it's normal capacity in this area.
